Object Diagrams

Ref

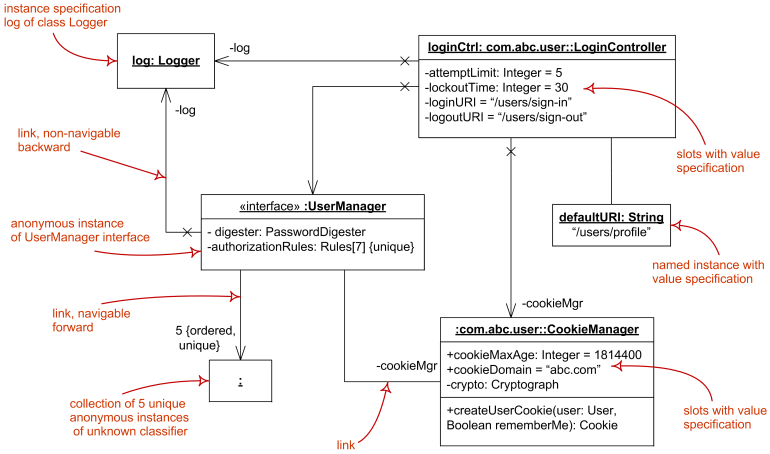

Example Object Diagram

Overview

• Definition: Object diagrams are a snapshot of the instances of classes at a particular moment, showing how objects are interconnected and the values of their attributes.

Key Features

• Instantiation:
  • Represents classes with actual instances. For example, instead of a generic Doctor class, you would have an instance like Dr. Smith.
• Attributes:
  • Each object displays its attribute values, providing a concrete view of the data contained within the class instances.

Purpose

• Discovery:
  • Used to identify additional attributes, relationships, and operations that may be missing or misplaced within the class structure.
• Validation:
  • Helps validate the class design by showing how instances relate and interact with each other in a real-world context.

Usage

• Illustration:
  • Object diagrams illustrate specific scenarios or states within the system, making it easier to understand the relationships and behaviors among instances.
• Modeling Complex Relationships:
  • Effective for visualizing complex interactions and dependencies between objects.
