Enhanced Entity-Relationship (EER) Model

The Enhanced Entity-Relationship (EER) Model extends the traditional ER model to meet the needs of complex database applications. It introduces additional concepts such as specialization, generalization, and inheritance, which allow for more expressive data modeling and better represent the semantics of complex systems.

Why EER Was Developed

The traditional ER model, while useful for basic database structures, could not easily handle more complex relationships, hierarchies, or object-oriented concepts like inheritance. The EER model addresses these limitations by:

• Supporting hierarchical relationships and inheritance.
• Introducing semantic constructs to handle more advanced data modeling needs.
• Accommodating more complex applications, such as object-oriented and real-time systems.

Key Concepts of the EER Model

Specialization and Generalization

Specialization

Specialization is a top-down approach where a general entity is divided into more specific subtypes. Each subtype inherits common attributes from the general entity but also has additional specialized attributes.

• Example: A Vehicle entity can be specialized into Car, Truck, and Motorcycle, where each subtype has specific attributes, such as NumberOfDoors for Car.

Generalization

Generalization is a bottom-up approach where specific entities are combined into a general entity, abstracting shared characteristics.

• Example: Car, Truck, and Motorcycle can be generalized into a Vehicle entity, which captures the common attributes of all vehicle types.

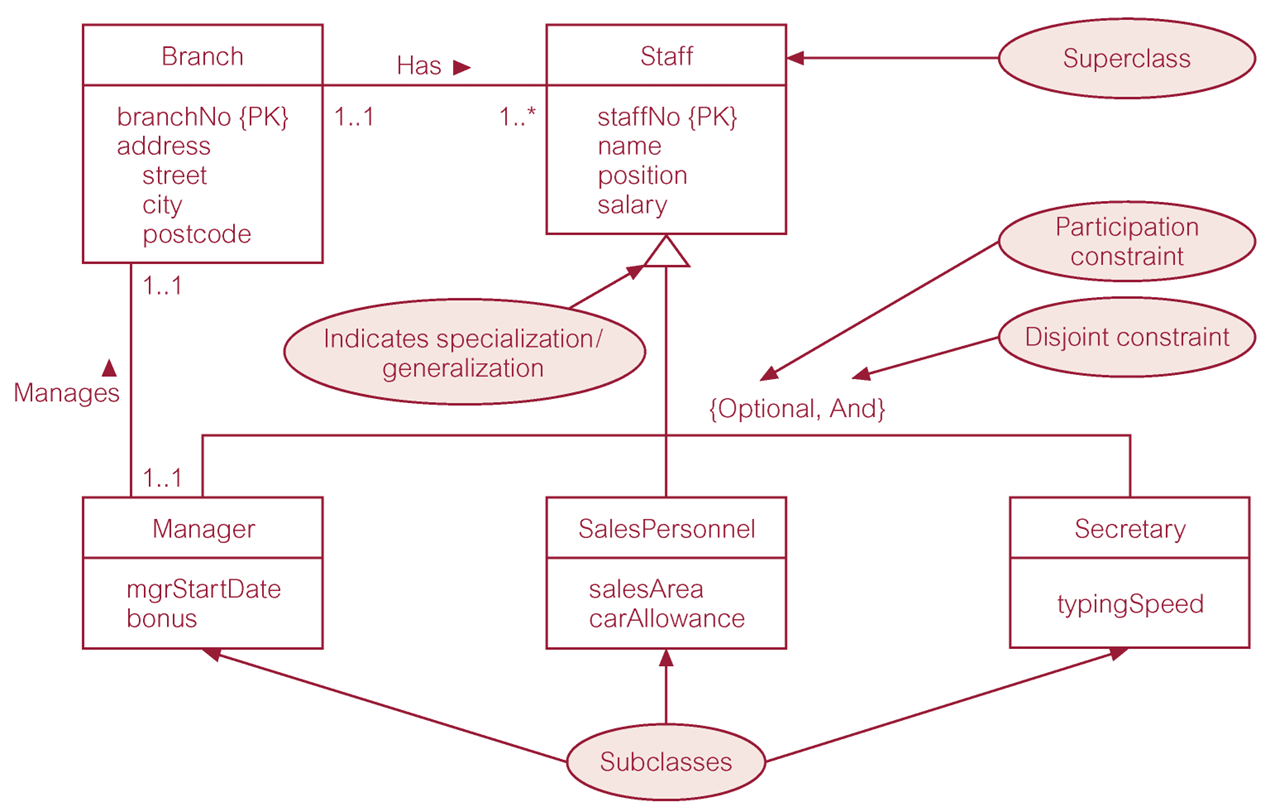

Specialization/generalization of Staff entity into subclasses representing job roles

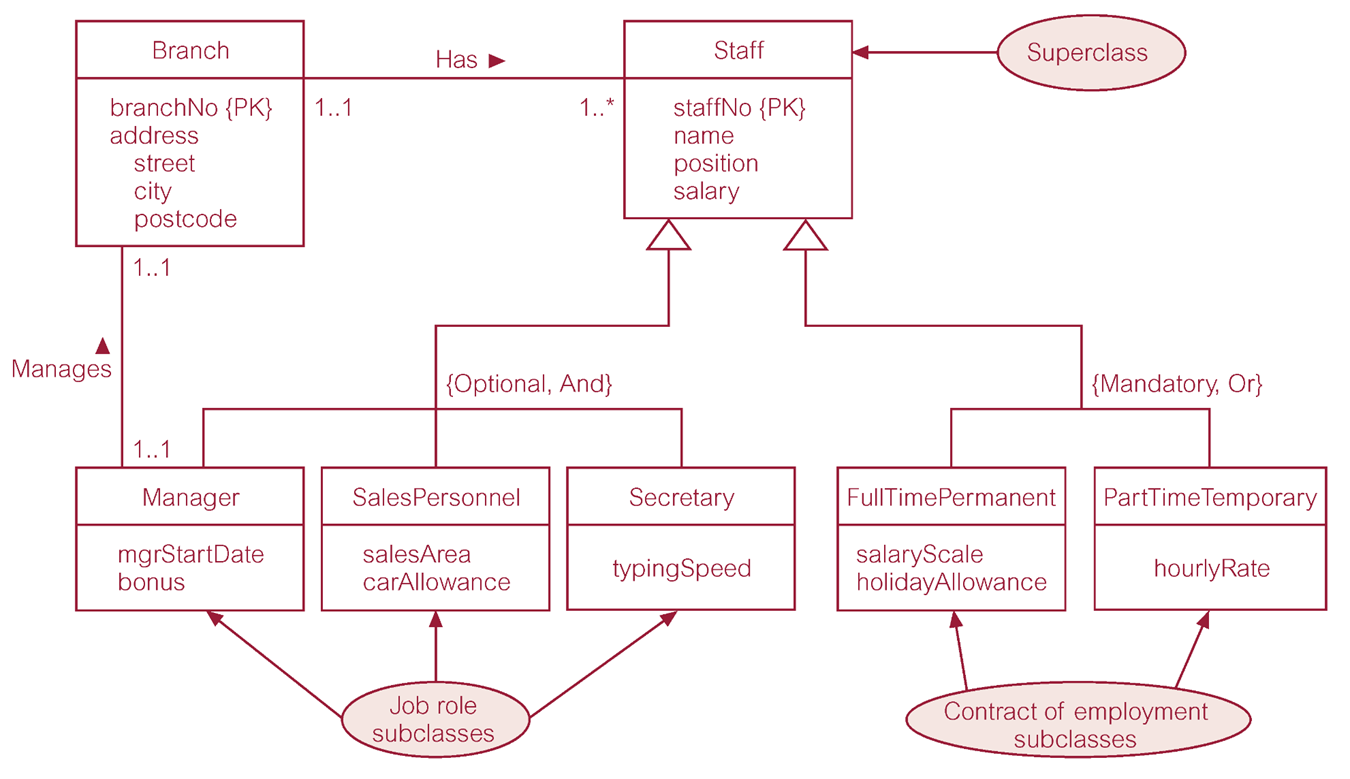

Specialization/generalization of Staff entity into job roles and contracts of employment

Constraints in Specialization/Generalization

Disjointness Constraint

• Disjoint specialization: An entity can belong to only one subtype.
  • Example: A Vehicle can be either a Car or a Truck, but not both.
• Overlap specialization: An entity can belong to multiple subtypes.
  • Example: A Person can be both a Student and an Employee.

Completeness Constraint

• Total specialization: Every instance of the supertype must belong to a subtype.
  • Example: Every Employee must be either a Manager or a Clerk.
• Partial specialization: Some instances of the supertype may not belong to any subtype.
  • Example: A Vehicle might not fit into either Car or Truck categories.

Inheritance

Inheritance allows subtypes to inherit attributes and relationships from a supertype. This reduces redundancy and improves data organization.

• Example: A Person entity specialized into Student and Teacher will pass common attributes like Name and DateOfBirth to both subtypes.

Categories (Union Types)

Categories (or union types) represent an entity that can be a subset of more than one entity. This is useful for handling situations where multiple entities share some, but not all, attributes.

• Example: A Payment entity might involve either CashPayment or CreditPayment, but not all Payments will be one or the other.

Aggregation

Aggregation allows relationships to be treated as higher-level entities. This is useful when modeling complex relationships that participate in other relationships.

• Example: A relationship between Projects and Departments might be aggregated to model the assignment of employees to projects within specific departments.

EER Diagrams

EER Diagram Notation

EER diagrams are an extension of traditional ER diagrams, with additional notations for specialization, generalization, and other EER concepts. Some key elements include:

• Entities: Rectangles representing entity types.
• Attributes: Ovals connected to entities, showing the properties of an entity.
• Relationships: Diamonds showing associations between entities.
• Specialization/Generalization: Triangles connecting supertypes to subtypes, with lines indicating the relationships.
• Disjointness/Overlap: Disjointness is represented by a “d” and overlap by an “o” near the triangle.

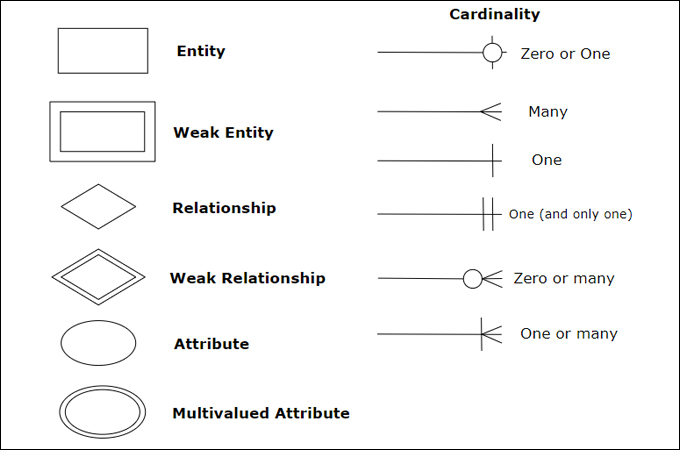

EER Diagram Notation

UML for EER

In some cases, UML (Unified Modeling Language) is used to represent EER concepts, especially when working with object-oriented systems. UML class diagrams incorporate inheritance, attributes, and relationships, similar to EER diagrams.

Benefits of the EER Model

The EER model offers several advantages over the traditional ER model:

• Greater expressiveness: It can model more complex relationships and constraints, giving a clearer representation of real-world scenarios.
• Support for complex applications: The EER model is better suited for advanced applications that require more flexibility.
• Reduces redundancy: Inheritance and generalization promote reuse of attributes, reducing redundancy.
• Improved semantic clarity: The model captures more detailed business rules and relationships.

Applications of EER Model

The EER model is ideal for:

• Object-Oriented Databases: Where inheritance, subtypes, and complex relationships are essential.
• Complex Systems: Such as medical or banking systems, where intricate data relationships exist.
• Data Warehousing: EER helps in modeling complex hierarchical structures and relationships within large datasets.

Example of EER Specialization/Generalization

In a University system:

• The Person entity is generalized into Student, Faculty, and Staff.
• Student can be further specialized into GraduateStudent and UndergraduateStudent.

            Person
          /    |    \
  Faculty   Student   Staff
                |
 GraduateStudent UndergraduateStudent

In this case:

• Person is the generalized entity.
• Faculty, Student, and Staff are specializations.
• Student is further specialized into GraduateStudent and UndergraduateStudent.

Each subtype inherits the common attributes of Person (such as Name and DateOfBirth), while having its own unique attributes.
