Database Architecture Types

Database architecture refers to the structure and organization of a database system. It defines how data is stored, accessed, and managed. Understanding different types of database architectures is crucial for designing systems that meet specific organizational needs.

Types of Database Architecture

Types of Database Architecture

Centralized Databases

• Definition: Centralized databases store all data in a single location or system.

• Characteristics:

  • All data is managed from one central point.
  • Ideal for environments where data access needs to be restricted.
  • Simplifies management and security since everything is located in one place.

• Advantages:

  • Easier to maintain and secure.
  • Simplified backup and recovery processes.

• Disadvantages:

  • Single point of failure; if the central system goes down, all data becomes inaccessible.
  • Scalability can become an issue as the volume of data grows.

Distributed Databases

• Definition: Distributed databases manage multiple databases across different systems or locations.

• Characteristics:

  • Data is spread across various sites, which can be geographically distributed.
  • Each site can operate independently, but they are part of a larger system.

• Types of Distributed Databases:

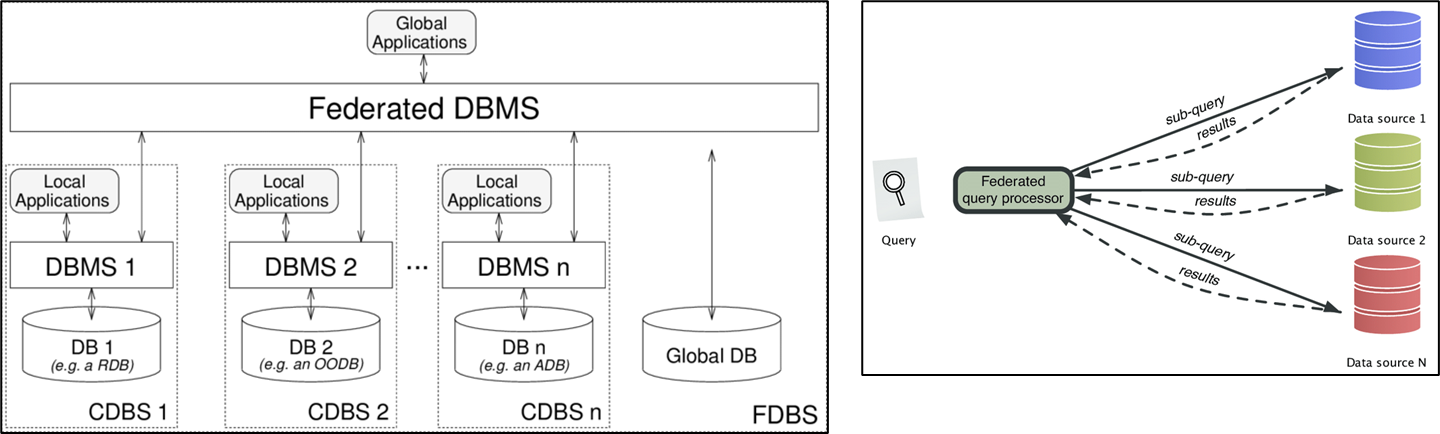

  • Federated Databases:
    • Comprise multiple autonomous databases that are linked to form a single database system.
    • Each database retains its autonomy while allowing for data sharing and integration without duplication.
    • Useful for organizations that need to maintain separate databases for different departments but want to provide a unified view of the data.

Federated Databases

• Non-Federated Databases:

  • These databases do not allow for autonomy; they are tightly coupled and rely on a central management system.
  • Typically used in scenarios where strict consistency and control are required.

• Advantages:

  • Enhanced reliability and availability; if one database fails, others can still function.
  • Improved performance due to localized data access.

• Disadvantages:

  • More complex management and maintenance compared to centralized systems.
  • Potential issues with data consistency due to the distributed nature.

Virtualization and Cloud Platforms

• Definition: Virtualization platforms abstract physical hardware resources, allowing multiple virtual instances to run on a single physical machine. Cloud platforms provide services over the internet without requiring knowledge of the physical infrastructure.

• Characteristics:

  • Supports various database deployment options, such as Database-as-a-Service (DaaS).
  • Enables flexible resource allocation based on demand.

• Advantages:

  • Scalability: Easily scale resources up or down based on needs.
  • Cost-effective: Pay-as-you-go models reduce upfront costs.

• Disadvantages:

  • Dependency on internet connectivity and service providers.
  • Potential security concerns with sensitive data stored off-site.
