Database Design Methodology

Logical Database Design for the Relational Model

Building the Logical Data Model

• Step 2.1: Derive Relations for Logical Data Model
  • Strong Entity Types: For each strong entity, create a relation that includes all simple attributes. For composite attributes, include only the constituent simple attributes.
  • Weak Entity Types: Create a relation that includes all simple attributes of the weak entity. The primary key of a weak entity is derived from the owner entity.
  • One-to-Many (1:*) Relationships: Designate the entity on the “one” side as the parent, and the entity on the “many” side as the child. Post a copy of the parent’s primary key into the child’s relation as a foreign key.
  • One-to-One (1:1) Relationships: Handle based on participation constraints:
    • Mandatory participation on both sides: Combine entities into one relation and choose one primary key.
    • Mandatory on one side: Post the parent’s primary key into the child relation.
    • Optional on both sides: The designation of parent and child is arbitrary unless additional information is provided.
  • Recursive 1:1 Relationships: Similar rules apply as for 1:1 relationships. Use two copies of the primary key or create a new relation for the recursive relationship.
  • Superclass/Subclass Relationships: Identify the superclass as the parent and subclass as the child. Representation options include:
    • Option A: Multiple relations—one for the superclass and one for each subclass.
    • Option B: Subclass relations only.
    • Option C: Single relation with a type attribute.
    • Option D: Single relation with multiple type attributes.
  • Many-to-Many (:) Relationships: Create a relation for the relationship, including a copy of the primary keys from the participating entities as foreign keys, which may also form the primary key of the new relation.
  • Multi-Valued Attributes: Create a new relation for the multi-valued attribute, including the primary key of the entity as a foreign key.

Mapping from ER Diagram to Relations

Key Guidelines

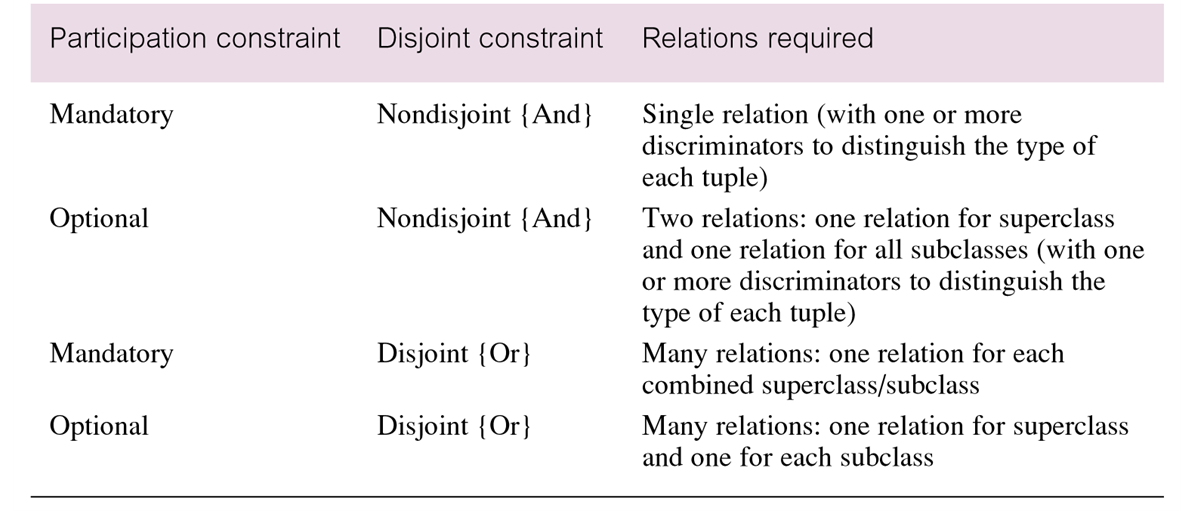

Guideline for representation of superclass / subclass relationship

• Strong Entities: Include all simple attributes.
• Weak Entities: Primary key derived from owner entity.
• Binary Relationships:
  • 1: relationships*: Parent’s primary key is added to the child’s relation.
  • 1:1 relationships: Participation constraints determine how entities are combined or related.
• Recursive Relationships: Similar handling to binary relationships, using multiple copies of the primary key if needed.
• Superclass/Subclass: Choose from multiple options based on participation and disjointness constraints.
• Multi-Valued Attributes: Create new relations with primary keys of the entity as foreign keys.

Common Scenarios

• Many-to-Many Relationships: A new relation is created with foreign keys from both participating entities.
• Recursive Relationships: Managed through additional relations or multiple primary keys depending on the participation.

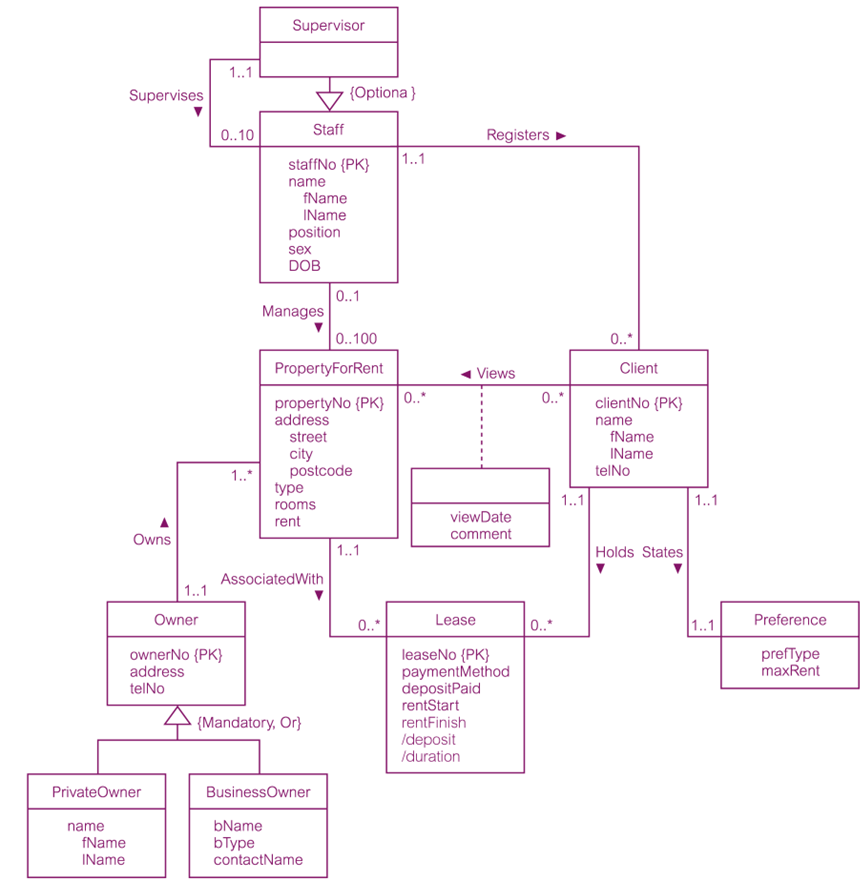

Conceptual data model for Staff view showing all attributes
